mydetector3d training and evaluation¶

Trained Models¶

These three models are trained based on ** Waymo ** dataset (Waymo132/train0to9) in HPC2, the model saved path is ‘/data/cmpe249-fa22/Mymodels/waymo_models/’

cfg_file=’mydetector3d/tools/cfgs/waymo_models/myvoxelnext.yaml’, ckpt file in ‘/data/cmpe249-fa22/Mymodels/waymo_models/myvoxelnext/0427b/ckpt/’
cfg_file=’mydetector3d/tools/cfgs/waymo_models/myvoxelnext_ioubranch.yaml’, ckpt file in ‘/data/cmpe249-fa22/Mymodels/waymo_models/myvoxelnext_ioubranch/0429/ckpt/’
cfg_file=’mydetector3d/tools/cfgs/waymo_models/mysecond.yaml’, ckpt file in ‘/data/cmpe249-fa22/Mymodels/waymo_models/mysecond/0429/ckpt/checkpoint_epoch_128.pth’
- evaluation result saved in ‘/data/cmpe249-fa22/Mymodels/eval/waymo_models_mysecond_epoch128’
cfg_file=’mydetector3d/tools/cfgs/waymo_models/my3dmodel.yaml’, ckpt file in ‘/data/cmpe249-fa22/Mymodels/waymo_models/my3dmodel/0507/ckpt/checkpoint_epoch_128.pth’
- evaluation result saved in ‘/data/cmpe249-fa22/Mymodels/eval/waymo_models_my3dmodel_epoch128’

Models are trained based on the complete Waymo dataset (Waymo132/trainall) in HPC2 * cfg_file=’mydetector3d/tools/cfgs/waymo_models/my3dmodel.yaml’, ckpt file in ‘/data/cmpe249-fa22/Mymodels/waymo_models/my3dmodel/0508/ckpt/checkpoint_epoch_256.pth’ continue training from 129-256 based on ckpt file in ‘/data/cmpe249-fa22/Mymodels/waymo_models/my3dmodel/0507/ckpt/checkpoint_epoch_128.pth’. * Evaluation result is saved to /data/cmpe249-fa22/Mymodels/eval/waymo_models_my3dmodel_epoch256/txtresults.

Car AP@0.70, 0.70, 0.70:
 bbox AP:91.7851, 91.7851, 91.7851
 bev  AP:68.3034, 68.3034, 68.3034
 3d   AP:49.0174, 49.0174, 49.0174
 aos  AP:50.76, 50.76, 50.76
Pedestrian AP@0.50, 0.50, 0.50:
 bbox AP:89.7635, 89.7635, 89.7635
 bev  AP:55.1775, 55.1775, 55.1775
 3d   AP:50.3953, 50.3953, 50.3953
 aos  AP:45.93, 45.93, 45.93
Cyclist AP@0.50, 0.50, 0.50:
 bbox AP:64.8413, 64.8413, 64.8413
 bev  AP:51.8248, 51.8248, 51.8248
 3d   AP:48.8936, 48.8936, 48.8936
 aos  AP:51.74, 51.74, 51.74

cfg_file=’mydetector3d/tools/cfgs/waymo_models/myvoxelnext.yaml’, ckpt file in ‘/data/cmpe249-fa22/Mymodels/waymo_models/myvoxelnext/0509/ckpt/checkpoint_epoch_128.pth’, trained from 0.
- Evaluation result is saved to /data/cmpe249-fa22/Mymodels/eval/waymo_models_myvoxelnext_epoch128/txtresults

Car AP@0.70, 0.70, 0.70:
bbox AP:96.9390, 96.9390, 96.9390
bev  AP:71.0638, 71.0638, 71.0638
3d   AP:57.9034, 57.9034, 57.9034
aos  AP:57.86, 57.86, 57.86
Pedestrian AP@0.50, 0.50, 0.50:
bbox AP:93.3127, 93.3127, 93.3127
bev  AP:67.9591, 67.9591, 67.9591
3d   AP:61.6305, 61.6305, 61.6305
aos  AP:52.90, 52.90, 52.90
Cyclist AP@0.50, 0.50, 0.50:
bbox AP:80.0512, 80.0512, 80.0512
bev  AP:70.7396, 70.7396, 70.7396
3d   AP:69.7192, 69.7192, 69.7192
aos  AP:67.86, 67.86, 67.86

cfg_file=’mydetector3d/tools/cfgs/waymo_models/mysecond.yaml’, ckpt file in ‘/data/cmpe249-fa22/Mymodels/waymo_models/mysecond/0510/ckpt/checkpoint_epoch_256.pth’, trained from previous mysecond_epoch_128.
- Evaluation result is saved to /data/cmpe249-fa22/Mymodels/eval/waymo_models_mysecond_epoch256/txtresults

Car AP@0.70, 0.70, 0.70:
bbox AP:92.4510, 92.4510, 92.4510
bev  AP:67.9950, 67.9950, 67.9950
3d   AP:50.5870, 50.5870, 50.5870
aos  AP:51.00, 51.00, 51.00
Pedestrian AP@0.50, 0.50, 0.50:
bbox AP:91.2207, 91.2207, 91.2207
bev  AP:56.9275, 56.9275, 56.9275
3d   AP:49.9933, 49.9933, 49.9933
aos  AP:47.57, 47.57, 47.57
Cyclist AP@0.50, 0.50, 0.50:
bbox AP:65.6921, 65.6921, 65.6921
bev  AP:52.4134, 52.4134, 52.4134
3d   AP:49.4230, 49.4230, 49.4230
aos  AP:52.40, 52.40, 52.40

New models are trained based on our converted ** WaymoKitti** dataset in HPC2, the model save path is ‘/data/cmpe249-fa22/Mymodels/waymokitti_models/’

cfg_file=’mydetector3d/tools/cfgs/waymokitti_models/pointpillar.yaml’, ckpt file in ‘/data/cmpe249-fa22/Mymodels/waymokitti_models/pointpillar/0504/ckpt/checkpoint_epoch_128.pth’
cfg_file=’mydetector3d/tools/cfgs/waymokitti_models/second.yaml’, ckpt file in ‘/data/cmpe249-fa22/Mymodels/waymokitti_models/second/0502/ckpt/checkpoint_epoch_128.pth’
cfg_file=’mydetector3d/tools/cfgs/waymokitti_models/voxelnext_3class.yaml’, ckpt file in ‘/data/cmpe249-fa22/Mymodels/waymokitti_models/voxelnext_3class/0430/ckpt/checkpoint_epoch_72.pth’
cfg_file=’mydetector3d/tools/cfgs/waymokitti_models/my3dmodel.yaml’, ckpt file in ‘/data/cmpe249-fa22/Mymodels/waymokitti_models/my3dmodel/0505/ckpt/latest_model.pth’

Model Evaluation¶

Evaluation results performed by ‘myevaluatev2.py’ are all saved in the folder of ‘/data/cmpe249-fa22/Mymodels/eval/’, the naming of the folder is ‘datasetname’+’modelname’+’epochnumber’

In each folder, e.g., ‘/data/cmpe249-fa22/Mymodels/eval/waymokitti_dataset_mysecond_epoch128/’, there are three results (.pkl) saved by the detection function

result.pkl file: the detection results in kitti format, i.e., det_annos array. Used for evaluation
ret_dicts.pkl: the detection results, groundtruth, and inference time for each frame
txtresults: detection results saved in Kitti format, the 2D bounding box is converted from 3D bounding box.
waymokitti_dataset_mysecond_epoch128_frame_1.pkl (naming: ‘datasetname_model_name_epochnumber_framenumber’) saved whole frame data with original Lidar points and groundtruth. Input this pkl file to ‘visonebatch.py’ to visualize the 3D detection results

The following results are saved by the evaluation function runevaluation

result_str txt file: kitti evaluation results
result_dict.pkl: recall related evaluation data

In ** runevaluation ** , input “det_annos” from detection results

get infos from dataset.infos, each anno dict in det_annos contain the following keys: ‘point_cloud’, ‘frame_id’, ‘metadata’, ‘image’, ‘annos’, ‘pose’, and ‘num_points_of_each_lidar’ (5 Lidars)
The ‘annos’ key contain key ‘gt_boxes_lidar’ (63,9), ‘dimensions’, ‘location’, ‘heading_angles’ ,…
The ‘annos’ part are convert to eval_gt_annos via the following code

eval_det_annos = copy.deepcopy(det_annos) # contains 'boxes_lidar' (N,7) key
eval_gt_annos = [copy.deepcopy(info['annos']) for info in datainfo] # contains 'gt_boxes_lidar' (N,7) key
transform_annotations_to_kitti_format(eval_det_annos, map_name_to_kitti=map_name_to_kitti)
transform_annotations_to_kitti_format(
                eval_gt_annos, map_name_to_kitti=map_name_to_kitti, info_with_fakelidar = False)
result_str, result_dict = kitti_eval.get_official_eval_result(eval_gt_annos, eval_det_annos, class_names)

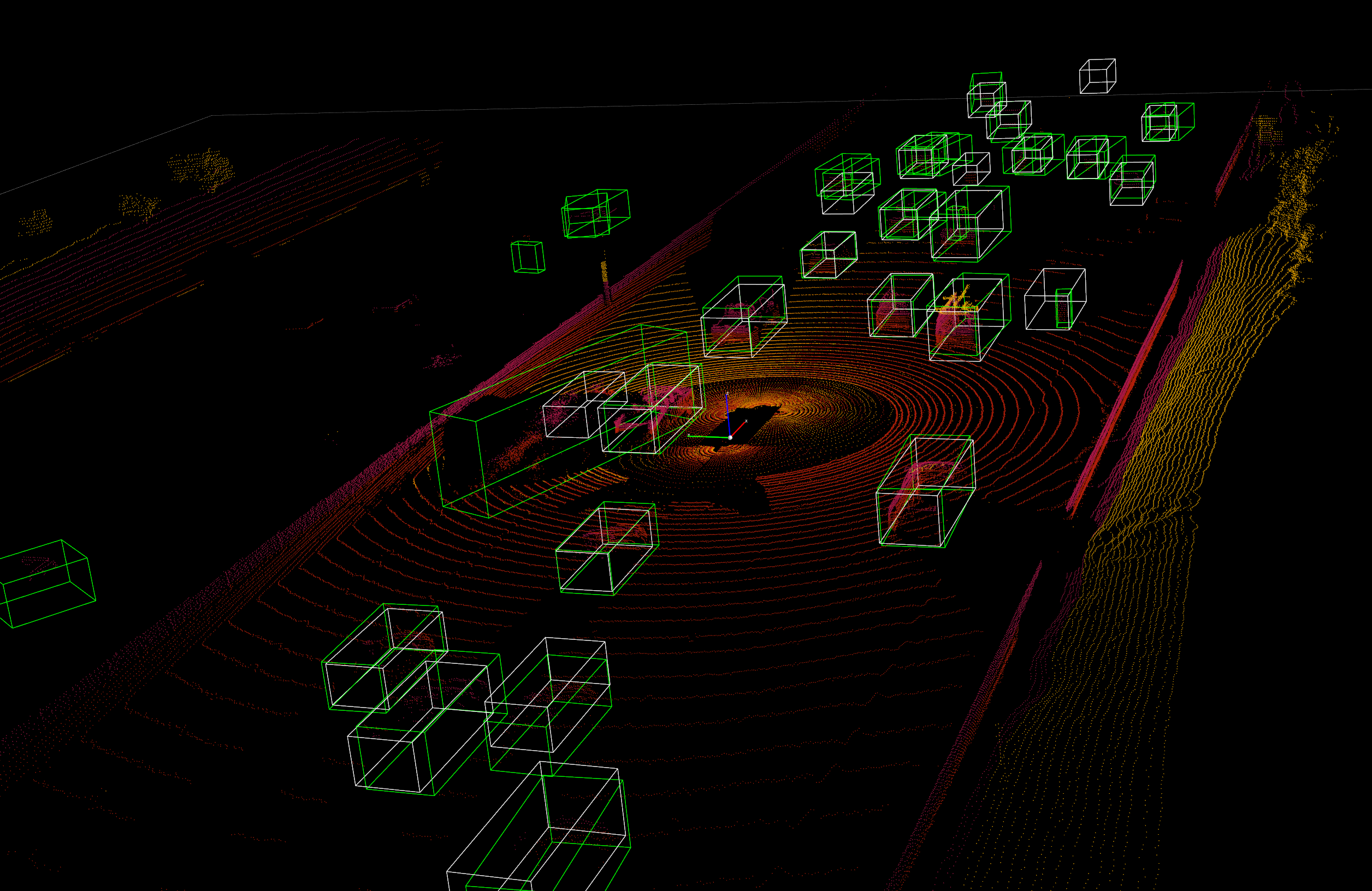

One example of the 3D detection result based on Waymokitti dataset and SECOND model is shown

Kitti Dataset Process¶

Run create_kitti_infos in ‘mydetector3d/datasets/kitti/kitti_dataset.py’, create ‘kitti_infos_train.pkl’, ‘kitti_infos_val.pkl’, ‘kitti_infos_trainval.pkl’, and ‘kitti_infos_test.pkl’ based on split file

call dataset.get_infos to generate each info.pkl file, process each file in sample_id_list via process_single_scene, save these infos

pc_info = {'num_features': 4, 'lidar_idx': sample_idx}
info['point_cloud'] = pc_info
image_info = {'image_idx': sample_idx, 'image_shape': self.get_image_shape(sample_idx)}
info['image'] = image_info
info['calib'] = calib_info
info['annos'] = annotations

Get all labels in obj_list via self.get_label(sample_idx), where each obj is

return object3d_kitti.get_objects_from_label(label_file)
                        |-------[Object3d(line) for line in lines]
                                  |-----in mydetector3d/utils/object3d_kitti.py

annotations is created from the obj_list, and each dict contains: [‘name’], [‘truncated’], [‘occluded’], [‘alpha’], [‘bbox’], [‘dimensions’]: lhw(camera) format, [‘location’], [‘rotation_y’], [‘score’], [‘difficulty’]

‘name’ is class name string from obj.cls_type
‘truncated’ (0 non-truncated ~ 1 truncated), ‘occluded’ (0 fully visible,1,2,3 unknown), ‘alpha’ (observation angle -pi~pi) are float from original kitti label txt * alpha considers the vector from the camera center to the object center * alpha is zero when this object is located along the Z-axis (front) of the camera
‘bbox’ is from obj.box2d label[4-7]: left, top, right, bottom image pixel coordinate (int)
‘dimensions’ is 3d object size in meters [obj.l, obj.h, obj.w] * obj.l is from label[10] length * obj.h is from label[9] width * obj.w is from label[8] height
‘location’ is from obj.loc (label[11-13]) xyz in camera coordinate
‘rotation_y’ from label[14] Rotation ry around Y-axis (to the ground) in camera coordinates [-pi..pi]
‘difficulty’ is calculated by get_kitti_obj_level based on the box2d height (pixel size>40 means Easy)

These annotations values are further processed to convert the loc from camera rect coordinate to Lidar coordinate, and move the Z height of the loc_lidar (shift objects’ center coordinate (original 0) from box bottom to the center)

loc_lidar = calib.rect_to_lidar(loc)
l, h, w = dims[:, 0:1], dims[:, 1:2], dims[:, 2:3]
loc_lidar[:, 2] += h[:, 0] / 2
gt_boxes_lidar = np.concatenate([loc_lidar, l, w, h, -(np.pi / 2 + rots[..., np.newaxis])], axis=1)
annotations['gt_boxes_lidar'] = gt_boxes_lidar

Where “-(np.pi / 2 + rots” is convert kitti camera rot angle definition (camera x-axis, clockwise is positive) to pcdet lidar rot angle definition (Lidar X-axis, clockwise is negative).

My Waymokitti Dataset Process¶

My Waymokitti Dataset saved in ‘/data/cmpe249-fa22/WaymoKitti/4c_train5678’

(mycondapy39) [010796032@coe-hpc2 cmpe249-fa22]$ ls /data/cmpe249-fa22/WaymoKitti/4c_train5678/ ImageSets training waymo_gt_database waymo_infos_trainval.pkl ImageSets2 waymo_dbinfos_train.pkl waymo_infos_train.pkl waymo_infos_val.pkl

Converted Waymo dataset to Kitti format via ‘Waymo2KittiAsync.py’ in ‘https://github.com/lkk688/WaymoObjectDetection’, run the following code

[DatasetTools]$ python Waymo2KittiAsync.py
[DatasetTools]$ python mycreatewaymoinfo.py --createsplitfile_only
[DatasetTools]$ python mycreatewaymoinfo.py --createinfo_only

The groundtruth db generation is done in https://github.com/lkk688/mymmdetection3d

In mycreatewaymoinfo.py, createinfo_only will call get_waymo_image_info in ‘https://github.com/lkk688/WaymoObjectDetection/blob/master/DatasetTools/myWaymoinfo_utils.py’, it will create the following info

Waymo annotation format version like KITTI:

{
    [optional]points: [N, 3+] point cloud
    [optional, for kitti]image: {
        image_idx: ...
        image_path: ...
        image_shape: ...
    }
    point_cloud: {
        num_features: 4 #6
        velodyne_path: ...
    }
    [optional, for kitti]calib: {
        R0_rect: ...
        Tr_velo_to_cam0: ...
        P0: ...
    }
    annos: {
        location: [num_gt, 3] array
        dimensions: [num_gt, 3] array
        rotation_y: [num_gt] angle array
        name: [num_gt] ground truth name array
        [optional]difficulty: kitti difficulty
        [optional]group_ids: used for multi-part object
    }
}

Created a new dataset file ‘mydetector3d/datasets/kitti/waymokitti_dataset.py’ based on kitti_dataset.py.

Waymo Dataset Process¶

Prepare the dataset¶

In ‘mydetector3d/datasets/waymo/waymo_dataset.py’, specify the ‘–func’ in main to select different preprocessing functions.

mycreateImageSet: Create the folder ‘ImageSets’ for the list of train val split file names under ‘/data/cmpe249-fa22/Waymo132/ImageSets/’
mygeninfo: create info files based on the provided folder list, the processed_data_tag=’train0to9’
mygengtdb: create the groundtruth database via create_waymo_gt_database function

In ** mygeninfo ** function:

call waymo_utils.process_single_sequence for each tfrecord sequence file, all returned infos dict list are saved in train0to9_infos_train.pkl under root folder ‘/data/cmpe249-fa22/Waymo132/’
waymo_utils.process_single_sequence created one folder for each sequence under the folder ‘/data/cmpe249-fa22/Waymo132/train0to9’. One pkl file contains list of all sequence info is saved, including annotations (via generate_labels).

generate_labels in mydetector3d/datasets/waymo/waymo_utils.py

utilize waymo frame.laser_labels for box annatation, loc = [box.center_x, box.center_y, box.center_z], dimensions.append([box.length, box.width, box.height]) the same to the unified coordinate of OpenPCDet
annotations contains ‘heading_angles’, ‘speed_global’, ‘accel_global’ are not in Kitti, Kitti’s ‘alpha’, ‘rotation_y’ are not in here
annotations[gt_boxes_lidar] is calcuated from

if annotations['name'].__len__() > 0:
    #get speed
    gt_boxes_lidar = np.concatenate([
        annotations['location'], annotations['dimensions'], annotations['heading_angles'][..., np.newaxis], speed], axis=1)
else:
    gt_boxes_lidar = np.zeros((0, 9))
annotations['gt_boxes_lidar'] = gt_boxes_lidar

save_lidar_points save each frame’s lidar data as one npy file (frame index as the name) under the sequence folder, 3d points in vehicle frame.

In ** mygengtdb ** function->create_waymo_gt_database:

call dataset.create_groundtruth_database (in waymo_dataset.py) for ‘train’ split
created ‘%s_gt_database_%s_sampled_%d_global.npy’ (stacked_gt_points) and ‘%s_waymo_dbinfos_%s_sampled_%d.pkl’ (array of dbinfo dict) under the root folder
each dbinfo is the following dict, each item is the groundtruth object with its gt_boxes and gt_points

db_info = {'name': names[i], 'path': db_path, 'sequence_name': sequence_name,
                              'sample_idx': sample_idx, 'gt_idx': i, 'box3d_lidar': gt_boxes[i],
                              'num_points_in_gt': gt_points.shape[0], 'difficulty': difficulty[i]}

created ‘%s_gt_database_%s_sampled_%d’ folder under the root

Prepare all dataset¶

(mycondapy39) [010796032@cs001 waymo]$ python waymo_dataset.py --func 'mycreateImageSet'
Total files: 648
Train size: (518, 1)
Val size: (130, 1)
Done in /data/cmpe249-fa22/Waymo132/ImageSets/trainval.txt
Done in /data/cmpe249-fa22/Waymo132/ImageSets/train.txt
Done in /data/cmpe249-fa22/Waymo132/ImageSets/val.txt
(mycondapy39) [010796032@cs001 waymo]$ python waymo_dataset.py --func 'mygeninfo'
totoal number of files: 648
(mycondapy39) [010796032@cs001 3DDepth]$ python mydetector3d/datasets/waymo/waymo_dataset.py --func 'mygengtdb'
 Total samples for Waymo dataset: 6485
 ---------------Start create groundtruth database for data augmentation---------------
 2023-05-08 18:06:49,870   INFO  Loading Waymo dataset
 2023-05-08 18:07:23,908   INFO  Total skipped info 0
 2023-05-08 18:07:23,908   INFO  Total samples for Waymo dataset: 25867
 Database Vehicle: 244715
 Database Pedestrian: 231457
 Database Cyclist: 11475
 ---------------Data preparation Done---------------

Initialize the dataset during training¶

Initialize class DatasetTemplate (in dataset.py), setup three processors specified in “DATA_PROCESSOR” section of the configuration file “mydetector3d/tools/cfgs/dataset_configs/mywaymo_dataset.yaml”

point_feature_encoder (based on dataset_cfg.POINT_FEATURE_ENCODING),
data_augmentor (based on dataset_cfg.DATA_AUGMENTOR),
data_processor (based on dataset_cfg.DATA_PROCESSOR). Get grid_size and voxel_size from data_processor.

self.grid_size = self.data_processor.grid_size #[1504, 1504, 40] = POINT_CLOUD_RANGE/voxel_size self.voxel_size = self.data_processor.voxel_size #[0.1, 0.1, 0.15]meters

Initialize class WaymoDataset in ‘mydetector3d/datasets/waymo/waymo_dataset.py’, read infos[] via include_waymo_data function

In ** include_waymo_data ** function: Iterate through sample_sequence_list (all tfrecord files), load pkl file as infos in each sequence folder, add all together to infos[].

In ** __getitem__ ** function

Get point cloud info pc_info, then get the lidar points [N,5] [x, y, z, intensity, elongation]

pc_info = info['point_cloud']
sequence_name = pc_info['lidar_sequence']
sample_idx = pc_info['sample_idx']
points = self.get_lidar(sequence_name, sample_idx) #load the npy file, limit the intensity from -1 to 1
input_dict.update({
         'points': points,
         'frame_id': info['frame_id'],
     })

Get ‘annos’ in info

gt_boxes_lidar = annos['gt_boxes_lidar'] #[N,9]
gt_boxes_lidar = gt_boxes_lidar[:, 0:7] #[54,8] not use speed information
#FILTER_EMPTY_BOXES_FOR_TRAIN
input_dict.update({
             'gt_names': annos['name'], #class string names [54,]
             'gt_boxes': gt_boxes_lidar, #[54,7]
             'num_points_in_gt': annos.get('num_points_in_gt', None) #[54,]
         })

Call data_dict = self.prepare_data(data_dict=input_dict) (DatasetTemplate)

data_dict = self.data_augmentor.forward # perform data augmentation
data_dict['gt_boxes'] = gt_boxes #Filter gt_boxes, convert gt_names to index and add to gt_boxes last column [Ngt,7]->[Ngt,8]
data_dict = self.point_feature_encoder.forward(data_dict) #do feature encoder for points [N,5], only add use_lead_xyz=True
data_dict = self.data_processor.forward #pre-processing for the points remove out of range ponts, shuffle, and convert to voxel (transform_points_to_voxels in data_processor.py)

transform_points_to_voxels in data_processor.py

voxel_output = self.voxel_generator.generate(points) # get voxels (64657, 5, 5), coordinates (64657, 3), num_points (64657,)
data_dict['voxels'] = voxels
data_dict['voxel_coords'] = coordinates
data_dict['voxel_num_points'] = num_points

get the final data_dict

‘gt_boxes’: (16, 16, 8), 16: batch size, 16: number of boxes (many are zeros), 8: boxes value

‘points’: (302730, 5): 5: add 0 in the left of 4 point features (xyzr)

Voxels: (89196, 32, 4) 32 is max_points_per_voxel 4 is feature(x,y,z,intensity)

Voxel_coords: (89196, 4) (batch_index,z,y,x) added batch_index in dataset.collate_batch

Voxel_num_points: (89196,)

Start the training for all waymo data

(mycondapy39) [010796032@cs001 3DDepth]$ python mydetector3d/tools/mytrain.py
2023-05-08 19:16:49,940   INFO  cfg_file         mydetector3d/tools/cfgs/waymo_models/my3dmodel.yaml
2023-05-08 19:16:49,940   INFO  batch_size       8
2023-05-08 19:16:49,940   INFO  epochs           256
2023-05-08 19:16:49,940   INFO  workers          4
2023-05-08 19:16:49,940   INFO  extra_tag        0508
2023-05-08 19:16:49,940   INFO  ckpt             /data/cmpe249-fa22/Mymodels/waymo_models/my3dmodel/0507/ckpt/checkpoint_epoch_128.pth
2023-05-08 19:16:49,967   INFO  ----------- Create dataloader & network & optimizer -----------
2023-05-08 19:16:53,197   INFO  Database filter by min points Vehicle: 244715 => 209266
2023-05-08 19:16:53,222   INFO  Database filter by min points Pedestrian: 231457 => 196642
2023-05-08 19:16:53,225   INFO  Database filter by min points Cyclist: 11475 => 10211
2023-05-08 19:16:53,248   INFO  Database filter by difficulty Vehicle: 209266 => 209266
2023-05-08 19:16:53,271   INFO  Database filter by difficulty Pedestrian: 196642 => 196642
2023-05-08 19:16:53,272   INFO  Database filter by difficulty Cyclist: 10211 => 10211
2023-05-08 19:16:53,323   INFO  Loading Waymo dataset
2023-05-08 19:16:54,998   INFO  Total skipped info 0
2023-05-08 19:16:54,998   INFO  Total samples for Waymo dataset: 25867
2023-05-08 19:16:54,998   INFO  Total sampled samples for Waymo dataset: 5174
Num point features initial 5
Num point features after VFE 64
num_bev_features features after BEV 64
num_bev_features features after backbone2d 384

mydetector3d training and evaluation¶

Trained Models¶

Model Evaluation¶

Kitti Dataset Process¶

My Waymokitti Dataset Process¶

Waymo Dataset Process¶

Prepare the dataset¶

Prepare all dataset¶

Initialize the dataset during training¶

Table of Contents

Previous topic

Next topic

This Page
